Roto Grind – technical data
| Parameter | Value |
|---|---|
| Weight (without electromotor and hydraulic unit): | 1 660 kg |
| Length: | 4 400 mm |
| Height (without blow): | 2 600 mm |
| Height (with long blow): | 2 850 mm |
| Width (without blow): | 2 880 mm |
| Width (with blow): | 3 200 mm |
| Tub depth: | 1 300 mm |
| Number of hammers : | 6×1 pcs heavy weight hammers, or 6×4 pcs light weight hammers |
| Number of counter knives (plates): | 5 pcs |
| Length of grinded material : | adjustable: between 4 and 15 cm depending on material |
| Grinding capacities: | Variable (see Capacities) |

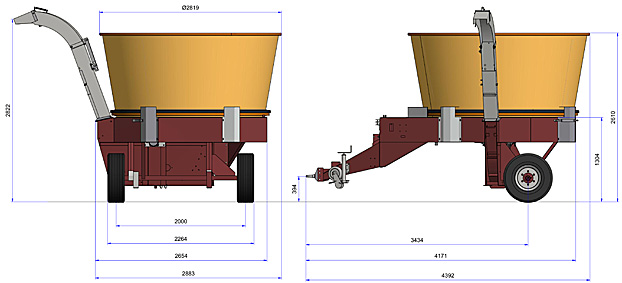

Dimensions of Roto grind tub grinder (mm)
